Inert Alumina Ceramic Ball 3mm 6mm 10mm Support Media Porcelain Balls
Basic Info.
Model NO. | Inert Alumina Ceramic Ball |
Key | Alumina Ceramic Ball |
Color | White |
Shape | Ball |
Name | Inert Ceramic Ball |
Al2O3 | More Than 90% |
MOQ | 1 T |
Certification | ISO9001 |
Package | 25kg Plastic Bag with Pallet |
Transport Package | Sackbag, Drum with Wood Pallet |
Specification | 3mm-76mm |
Trademark | A&R |
Origin | Jiangxi, China |
HS Code | 6909110000 |
Production Capacity | 15, 000, 000kgs/Year |
Product Description

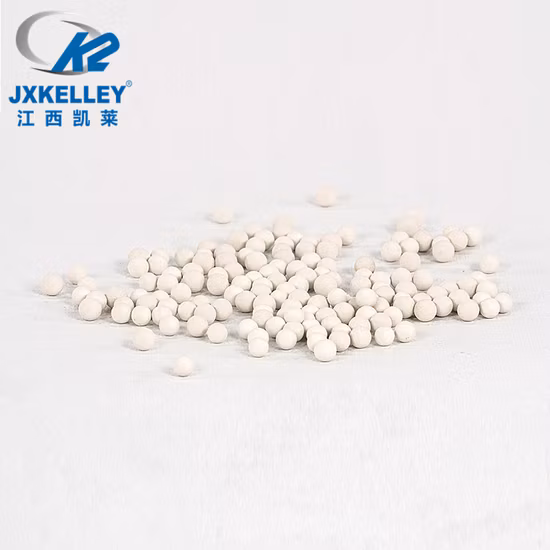

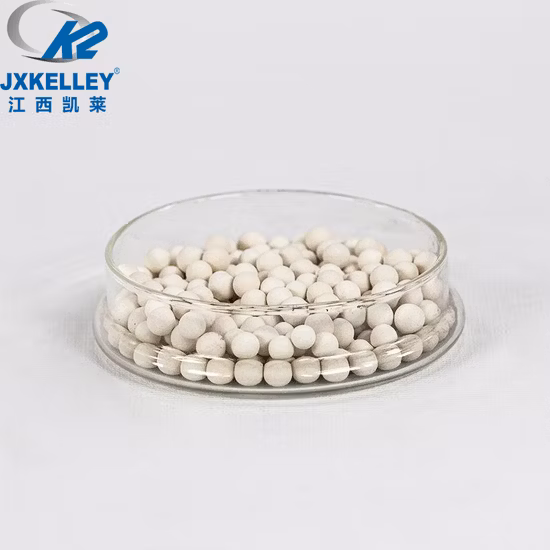

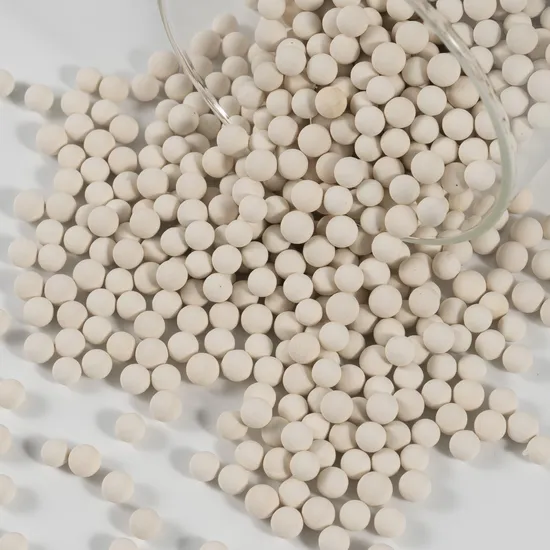

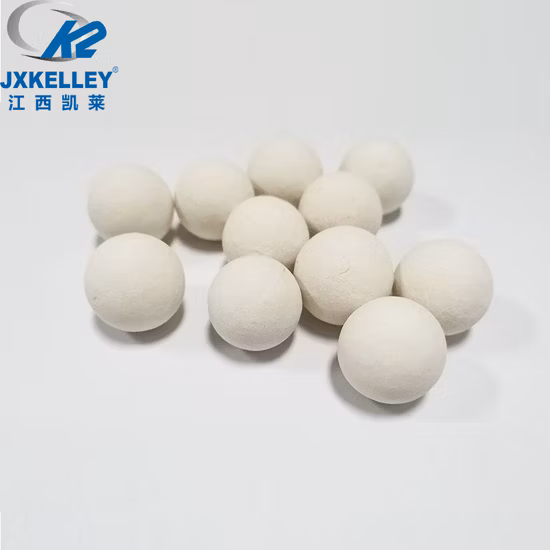

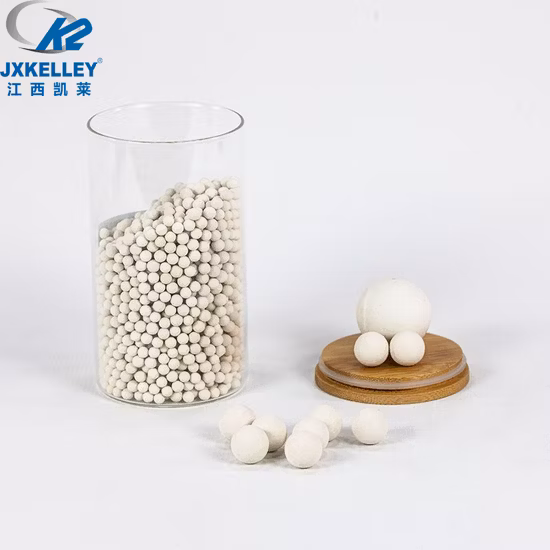

Inert Alumina Ceramic Ball 3mm 6mm 10mm Support Media Porcelain Balls
Product Description
Ceramic ball are the most widely used support media in the world because of their excellent consistence and reliability. Products to these specifications are manufactured from very high quality chemical-porcelain clay materials, which has quite excellent stability, high mechanical strength and resistance to thermal shock, This makes them all ideal choice for support of all types of catalyst.
Product Parameters
Chemical composition for ceramic ball
Al2O3+SiO2 | Al2O3 | Fe2O3 | MgO | K2O+Na2O +CaO | Other |
> 93% | 17-23% | <1% | <0.5% | <4% | <1% |
Physical composition for ceramic ball
Item | Value |
Water absorption (%) | <0.5 |
Bulk density (g/cm3) | 1.35-1.4 |
Specific gravity (g/cm3) | 2.3-2.4 |
Free volume (%) | 40 |
Operation temp.(max) (°C) | 1100 |
Moh's hardness (scale) | >6.5 |
Acid resistance (%) | >99.6 |
Alkali resistance (%) | >85 |
Size available & Crush strength for ceramic ball
Size | Crush strength | |
Kg/particle | KN/particle | |
1/8''(3mm) | >35 | >0.35 |
1/4''(6mm) | >60 | >0.60 |
3/8''(10mm) | >85 | >0.85 |
1/2''(13mm) | >185 | >1.85 |
3/4''(19mm) | >487 | >4.87 |
1''(25mm) | >850 | >8.5 |
1-1/2''(38mm) | >1200 | >12 |
2''(50mm) | >5600 | >56 |
Company ProfilePINGXIANG A & R CERAMICS CO., LTD. is located in Muma Industrial Park, Xiangdong district, Pingxiang, Jiangxi Province. It produces industrial ceramics, tower packings, catalysts, molecular sieves, activated alumina, and filter materials etc. Used in chemical and petrochemical industries. Globally, innovative, struggling and surpassing, the company establish a long-term cooperative relationship with Shanghai university of technology, and Tianhua research and design institute of chemical machinery, and developed a lot of new technologies and products, and won the State paten of invention. Owe to its strict management, meticulous manufacture, and standardized operation, the company acquired the certificate of ISO9001, ensure to provide satisfied service for users with its exquisite technology and products. Looking to the future, being blessed with new opportunities and faced with new challenges, we will continue to uphold the philosophy of "Integrity, Pragmatism, and Innovation", and do our best to strive after, to create a more brilliant future with all our friends. PINGXIANG A & R CERAMICS CO., LTD. has remained unwavering in its commitment to quality, uncompromising in its attention to detail and focused on being at the forefront of technology of making Honeycomb ceramic, Catalyst support ball, Random Packing, Structured packing, Activated Alumina, Molecular Sieve. Ever keeping an eye on long run, A& R connected a gas pipeline with Pingxiang Iron& Steel company in 2000, not only did it protect the environment from pollution, it also cleared the products from impurities and blemishes. At the same time, A & R introduced a deferrization equipment to lower the iron contains less than 0.6'
Why Choose Us
1.15 years of professional production industrial ceramics factory
2. High quality products with low price
3. High precision parts with lowest tolerance
4. Show time for production
5. Has a group of experienced, professional and efficient R&D team
6. Has a good reputation in China and abroad.
7. MOQ is not limited, small quantity is welcome.
8. Vigorous team and good after-sales service
Q: Are you trading company or manufacturer?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. Or it is 15-30 days if the goods are not in stock, it is according to
quantity.
Q: Do you provide samples? Is it free or extra?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 50% T/T in advance, balance before shippment.
